STPS15L45CB Datasheet - ST Microelectronics

STPS15L45CB LOW DROP POWER SCHOTTKY RECTIFIER

Dual center tab Schottky rectifier suited for SMPS and high frequency DC to DC converters. Packaged in DPAK, the STPS15L45C is intended for use in low voltage, high frequency inverters, freewheeling and polarity protection applications. DS2653 - Rev 6 - April 2020 For further information contact yo.

STPS15L45CB Features

* Very small conduction losses

* Negligible switching losses

* Extremely fast switching

* Low forward voltage drop

* Low capacitance

* Avalanche capability specified

* ECOPACK2 compliant component Applications

* SMPS

* Freewheel

STPS15L45CB_STMicroelectronics.pdf

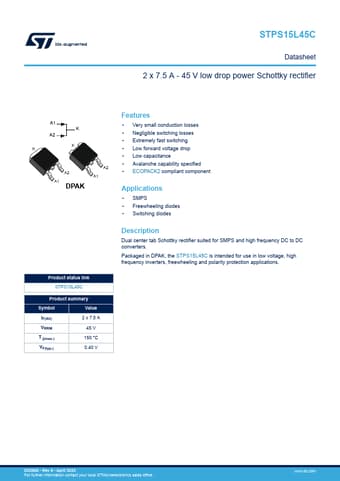

Preview of STPS15L45CB PDF
STPS15L45CB Datasheet Preview Page 2 STPS15L45CB Datasheet Preview Page 3

Datasheet Details

Part number:

STPS15L45CB

Manufacturer:

STMicroelectronics ↗

File Size:

180.92 KB

Description:

Low drop power schottky rectifier.
