STPS15L45C, STPS15L45CB Datasheet - STMicroelectronics

STPS15L45C LOW DROP POWER SCHOTTKY RECTIFIER

Dual center tab Schottky rectifier suited for SMPS and high frequency DC to DC converters. Packaged in DPAK, the STPS15L45C is intended for use in low voltage, high frequency inverters, freewheeling and polarity protection applications. DS2653 - Rev 6 - April 2020 For further information contact yo.

STPS15L45C Features

* Very small conduction losses

* Negligible switching losses

* Extremely fast switching

* Low forward voltage drop

* Low capacitance

* Avalanche capability specified

* ECOPACK2 compliant component Applications

* SMPS

* Freewheel

STPS15L45CB_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STPS15L45C, STPS15L45CB. Please refer to the document for exact specifications by model.

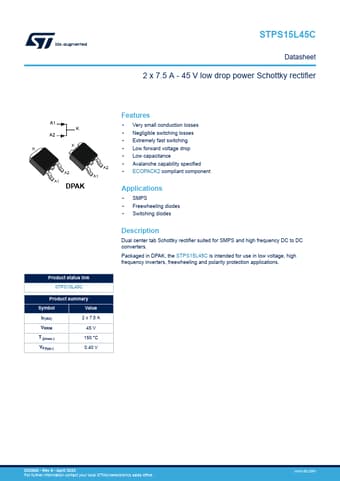

STPS15L45C Datasheet Preview Page 2 STPS15L45C Datasheet Preview Page 3

Datasheet Details

Part number:

STPS15L45C, STPS15L45CB

Manufacturer:

STMicroelectronics ↗

File Size:

180.92 KB

Description:

Low drop power schottky rectifier.

Note:

This datasheet PDF includes multiple part numbers: STPS15L45C, STPS15L45CB.
Please refer to the document for exact specifications by model.
