STPS15L45C-Y Datasheet - STMicroelectronics

STPS15L45C-Y Automotive low drop power Schottky rectifier

Dual center tab Schottky rectifier suited for SMPS and high frequency DC to DC converters. Packaged in DPAK, the STPS15L45C-Y is intended for use in low voltage, high frequency inverters, freewheeling and polarity protection for automotive application. DS7145 - Rev 3 - November 2018 For further inf.

STPS15L45C-Y Features

* AEC-Q101 qualified

* Very small conduction losses

* Negligible switching losses

* Extremely fast switching

* Low forward voltage drop

* Avalanche capability specified

* PPAP capable

* ECOPACK®2 compliant component Applications

STPS15L45C-Y-STMicroelectronics.pdf

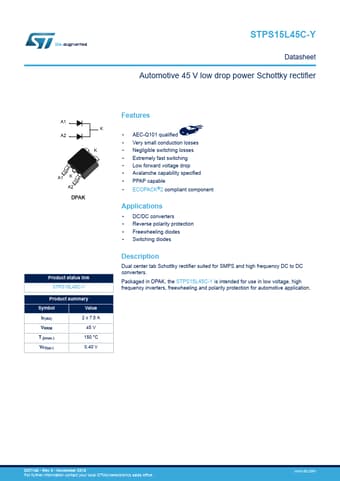

Preview of STPS15L45C-Y PDF
STPS15L45C-Y Datasheet Preview Page 2 STPS15L45C-Y Datasheet Preview Page 3

Datasheet Details

Part number:

STPS15L45C-Y

Manufacturer:

STMicroelectronics ↗

File Size:

206.97 KB

Description:

Automotive low drop power schottky rectifier.
