STPS15L60C, STPS15L60CB Power Schottky rectifier

STPS15L60C Description

STPS15L60C Power Schottky rectifier $ .$ ..$ $ $ $ '3$..

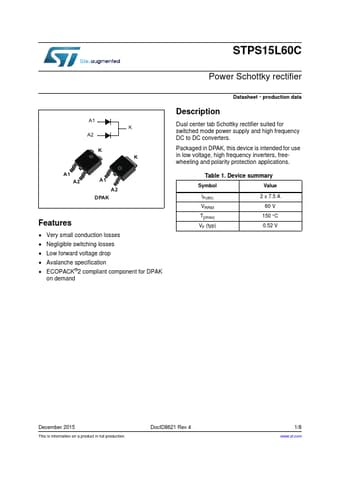

Dual center tab Schottky rectifier suited for switched mode power supply and high frequency DC to DC converters.

STPS15L60C Features

* Very small conduction losses
* Negligible switching losses
* Low forward voltage drop
* Avalanche specification

STPS15L60C Applications

* Table 1. Device summary Symbol Value IF(AV) VRRM Tj(max) VF (typ) 2 x 7.5 A 60 V 150 °C 0.52 V December 2015 This is information on a product in full production. DocID8621 Rev 4 1/8 www. st. com Characteristics 1 Characteristics STPS15L60C Table 2. Absolute ratings (limiting values per d
