STPS15L30CDJF Datasheet - ST Microelectronics

STPS15L30CDJF 15A high efficiency PowerFLAT power Schottky diode

This dual center tap Schottky rectifier is ideally suited for switch mode power supply and high frequency DC to DC converters. Packaged in PowerFLAT 5x6, the STPS15L30CDJF is optimized for use in low voltage high frequency inverters, free-wheeling and polarity protection applications. Its low profil.

STPS15L30CDJF Features

* Low forward voltage drop

* Very low conduction losses

* Negligible switching losses

* Extremely fast switching

* Low thermal resistance

* Avalanche rated

* High integration

* Thin package: 1 mm

* ECOPACK2 compliant Application

STPS15L30CDJF_STMicroelectronics.pdf

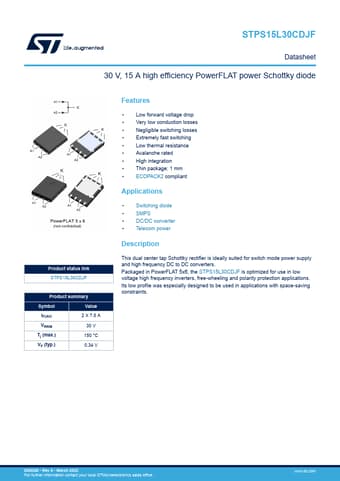

Preview of STPS15L30CDJF PDF
STPS15L30CDJF Datasheet Preview Page 2 STPS15L30CDJF Datasheet Preview Page 3

Datasheet Details

Part number:

STPS15L30CDJF

Manufacturer:

STMicroelectronics ↗

File Size:

296.09 KB

Description:

15a high efficiency powerflat power schottky diode.
