STPS1545-Y - Automotive power Schottky rectifier

STPS1545-Y Description

$ ...72$& $ .
Single chip Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters.

STPS1545-Y Features

* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Avalanche capability specified
* AECQ-101 qualified

STPS1545-Y Applications

* Table 1. Device summary Symbol Value IF(AV) VRRM Tj (max) VF (typ) 15 A 45 V 175 °C 0.50 V May 2016 This is information on a product in full production. DocID023750 Rev 2 1/8 www. st. com Characteristics 1 Characteristics STPS1545-Y Table 2. Absolute ratings (limiting values) Symbol Para

📥 Download Datasheet

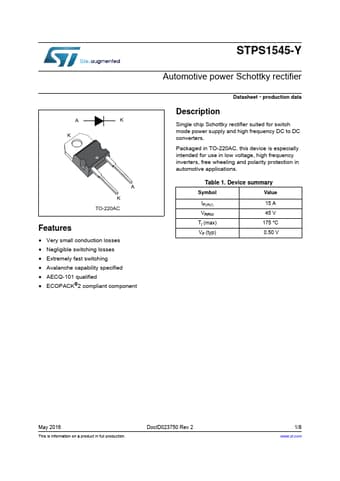

Preview of STPS1545-Y PDF
datasheet Preview Page 2 datasheet Preview Page 3
