STPS1545D, STPS1545 Power Schottky rectifier

STPS1545D Description

STPS1545 Power Schottky rectifier Datasheet - production data A K K K K A TO-220AC K A NC A NC D2PAK A TO-220FPAC K .
Single chip Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters.

STPS1545D Features

* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Insulated package: TO-220FPAC, insulating voltage = 2000 VRMS sine
* Avalanche capability specified

STPS1545D Applications

* Table 1: Device summary Symbol Value IF(AV) VRRM Tj (max. ) VF (typ. ) 15 A 45 V 175 °C 0.5 V October 2016 DocID3504 Rev 7 This is information on a product in full production. 1/13 www. st. com Characteristics STPS1545 1 Characteristics Table 2: Absolute ratings (limiting values at 25 °C,

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS1545D, STPS1545. Please refer to the document for exact specifications by model.

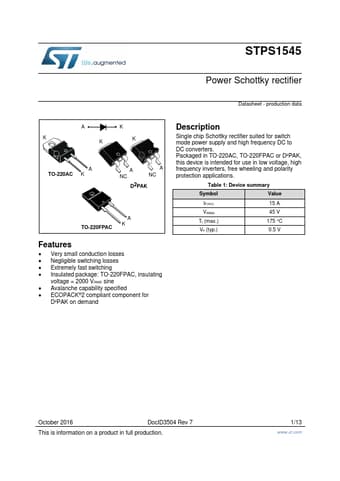

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS1545D, STPS1545
Manufacturer
STMicroelectronics ↗
File Size
518.00 KB
Datasheet
STPS1545-STMicroelectronics.pdf
Description
Power Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS1545D, STPS1545.
Please refer to the document for exact specifications by model.
