STPS15L30C, STPS15L30CB Low drop power Schottky rectifier

STPS15L30C Description

STPS15L30C Low drop power Schottky rectifier $ .$ ..$ $ $ $ '3$..
Dual center tab Schottky rectifier suited for switched mode power supply and high frequency DC to DC converters.

STPS15L30C Features

* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Low forward voltage drop
* Low capacitance
* Low thermal resistance
* Avalanche specification
* ECOPACK®2 compliant component for DPAK on demand Datasheet - production data Des

STPS15L30C Applications

* Table 1. Device summary Symbol Value IF(AV) VRRM Tj VF (typ) 2 x 7.5 A 30 V 150 °C 0.34 V December 2015 This is information on a product in full production. DocID8563 Rev 4 1/8 www. st. com Characteristics 1 Characteristics STPS15L30C Table 2. Absolute ratings (limiting values per diode

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS15L30C, STPS15L30CB. Please refer to the document for exact specifications by model.

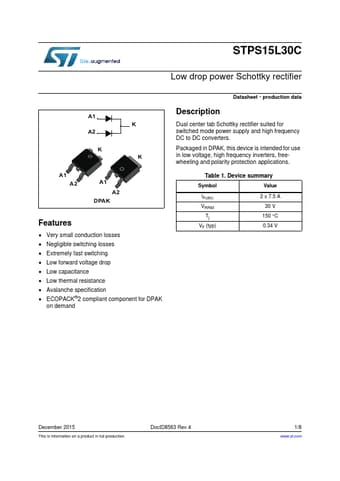

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS15L30C, STPS15L30CB
Manufacturer
STMicroelectronics ↗
File Size
226.41 KB
Datasheet
STPS15L30CB_STMicroelectronics.pdf
Description
Low drop power Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS15L30C, STPS15L30CB.
Please refer to the document for exact specifications by model.
