STPS20120CT, STPS20120C power Schottky rectifier

STPS20120CT Description

$ $ ...$ $ .72$%QDUURZOHDGV .,ð3$.$ $.$ $ .72$% ..$ $ '3$.$ $ STPS20120C Power Schottky rectifier Datas.
This dual diode Schottky rectifier is suited for high frequency switched mode power supplies.

STPS20120CT Features

* High junction temperature capability
* Good trade-off between leakage current and forward voltage drop
* Low leakage current
* Avalanche capability specified
* ECOPACK®2 compliant component for DPAK on demand November 2016 This is information on a product in full production.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS20120CT, STPS20120C. Please refer to the document for exact specifications by model.

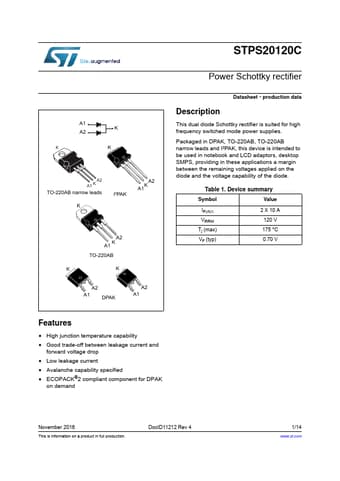

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS20120CT, STPS20120C
Manufacturer
STMicroelectronics ↗
File Size
270.65 KB
Datasheet
STPS20120C_STMicroelectronics.pdf
Description
power Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS20120CT, STPS20120C.
Please refer to the document for exact specifications by model.
