STPS20150CT, STPS20150C Datasheet - STMicroelectronics

STPS20150CT High voltage power Schottky rectifier

Dual center tap Schottky rectifier designed for high frequency switch mode power supplies. A2 A1 D2PAK A2 A1 Product status link STPS20150C Product summary IF(AV) 2 x 10 A VRRM 150 V Tj (max) 175 °C VF (typ) 0.69 V DS2252 - Rev 12 - April 2018 For further information contact your local.

STPS20150CT Features

* High junction temperature capability

* Good trade off between leakage current and forward voltage drop

* Low leakage current

* Avalanche capability specified

* Insulated package: TO-220FPAB

* Insulating voltage = 2000 VRMS sine

* ECOPACK®2 co

STPS20150C_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STPS20150CT, STPS20150C. Please refer to the document for exact specifications by model.

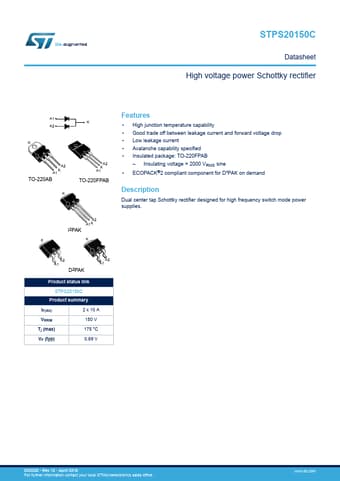

STPS20150CT Datasheet Preview Page 2 STPS20150CT Datasheet Preview Page 3

Datasheet Details

Part number:

STPS20150CT, STPS20150C

Manufacturer:

STMicroelectronics ↗

File Size:

289.54 KB

Description:

High voltage power schottky rectifier.

Note:

This datasheet PDF includes multiple part numbers: STPS20150CT, STPS20150C.
Please refer to the document for exact specifications by model.
