STPS20170C - High voltage power Schottky rectifier

STPS20170C Description

STPS20170C High voltage power Schottky rectifier Datasheet - production data A1 K A2 K A2 K A1 TO-220AB K A2 K A1 TO-220FPAB K A2 A1 D²PAK A2 A.
Dual center tap Schottky rectifier diode suited for high frequency switched mode power supplies.

STPS20170C Features

* High reverse voltage
* High junction temperature capability
* Avalanche specification with derating curves
* Insulated package TO-220FPAB  Insulating voltage: 2000 VRMS sine
* ECOPACK®2 compliant component for D²PAK on demand Benefits
* Can challenge bipolar ultrafast diod

📥 Download Datasheet

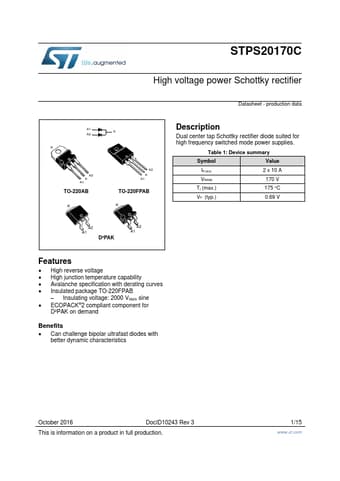

Preview of STPS20170C PDF
datasheet Preview Page 2 datasheet Preview Page 3
