STPS2545C Power Schottky rectifier

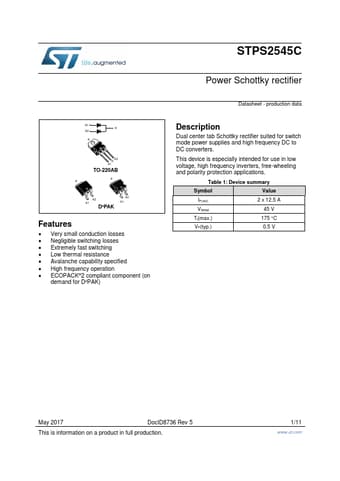

📥 Download Datasheet Datasheet Preview Page 1

Description

A1 K A2 K A2 K A1 TO-220AB K K A2 A1 D²PAK A2 A1 .
Dual center tab Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters.

📥 Download Datasheet

Preview of STPS2545C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Low thermal resistance
* Avalanche capability specified
* High frequency operation
* ECOPACK®2 compliant component (on demand for D²PAK) STPS2545C Power Schottky rectifier Datashe

Applications

* Table 1: Device summary Symbol Value IF(AV) VRRM Tj(max. ) VF(typ. ) 2 x 12.5 A 45 V 175 °C 0.5 V May 2017 DocID8736 Rev 5 This is information on a product in full production. 1/11 www. st. com Characteristics STPS2545C 1 Characteristics Table 2: Absolute ratings (limiting values, per dio
