STPS2545CT

Power Schottky rectifier

STPS2545CT Features

* Very small conduction losses

* Negligible switching losses

* Extremely fast switching

* Low thermal resistance

* Avalanche capability specified

* High frequency operation

* ECOPACK®2 compliant component (on demand for D²PAK) STPS2545C Power Schottky rectifier Datashe

STPS2545CT General Description

Dual center tab Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters. This device is especially intended for use in low voltage, high frequency inverters, free-wheeling and polarity protection applications. Table 1: Device summary Symbol Value IF(AV) V.

STPS2545CT Datasheet (460.22 KB)

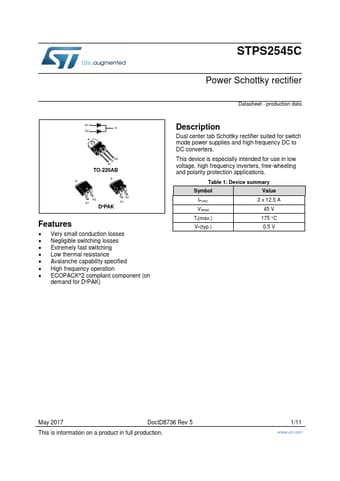

Preview of STPS2545CT PDF

Datasheet Details

Part number:

STPS2545CT

Manufacturer:

STMicroelectronics ↗

File Size:

460.22 KB

Description:

Power schottky rectifier.
