STPS2L60-Y Automotive power Schottky rectifier

STPS2L60-Y Description

STPS2L60-Y Automotive power Schottky rectifier .
This power Schottky rectifier is suited to switched mode power supplies and high frequency DC to DC converters for automative applications.

STPS2L60-Y Features

* AEC-Q101 qualified
* Negligible switching losses
* Low forward voltage drop
* Surface mount miniature package
* Avalanche capability specified

STPS2L60-Y Applications

* Packaged in SMA, this device is especially intended for use in low voltage, high frequency inverters and small battery chargers. A K SMA STPS2L60AY Table 1. Device summary Symbol IF(AV) VRRM Tj (max) VF(max) Value 2A 60 V 150 °C 0.55 V November 2011 Doc ID 018927 Rev 1 1/7 www. st. com 7 Char

📥 Download Datasheet

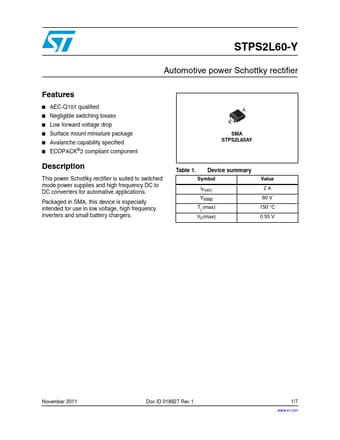

Preview of STPS2L60-Y PDF
datasheet Preview Page 2 datasheet Preview Page 3
