STPS2L30A Datasheet - STMicroelectronics

LOW DROP POWER SCHOTTKY RECTIFIER

STPS2L30A Features

* Low forward voltage drop for less power dissipation

* Optimized conduction/reverse losses trade-off which lead to the highest efficiency in the applications

* Surface mount miniature package

* Avalanche rated

* ECOPACK2 component Applications

* Cordl

STPS2L30A General Description

Single chip Schottky rectifiers designed for high frequency miniature switched mode power supplies such as adaptors and on board DC/DC converters. Packaged in SMA, SMA Flat, SMA Flat Notch and SMB Flat, the STPS2L30 is ideal for use in parallel with MOSFETs in synchronous rectification. DS1526 - Re.

STPS2L30A Datasheet (396.47 KB)

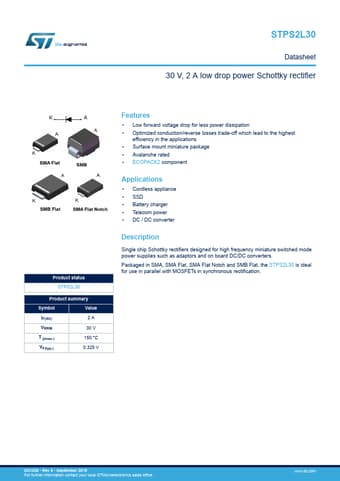

STPS2L30A Datasheet Preview — Preview of STPS2L30A PDF

Datasheet Details

Part number:

STPS2L30A

Manufacturer:

STMicroelectronics ↗

File Size:

396.47 KB

Description:

Low drop power schottky rectifier.
STPS2L30 Datasheet 30 V, 2 A low drop power Schottky rectifier Product status STPS2L30 Product summary Symbol Value IF(AV) 2A VRRM 30 V T j(m.
