STPS2L40 LOW DROP POWER SCHOTTKY RECTIFIER

STPS2L40 Description

STPS2L40 Datasheet 40 V, 2 A low drop power Schottky rectifier Product status STPS2L40 Product summary Symbol Value IF(AV) 2A VRRM 40 V T j(m.
Single chip Schottky rectifiers designed for high frequency miniature switched mode power supplies such as adaptors and on board DC/DC converters.

STPS2L40 Features

* Very small conduction losses
* Negligible switching losses
* Low forward voltage drop
* Surface mount miniature package
* Avalanche rated

STPS2L40 Applications

* Telecom power supply
* Set-top box power supply
* TV power supply

📥 Download Datasheet

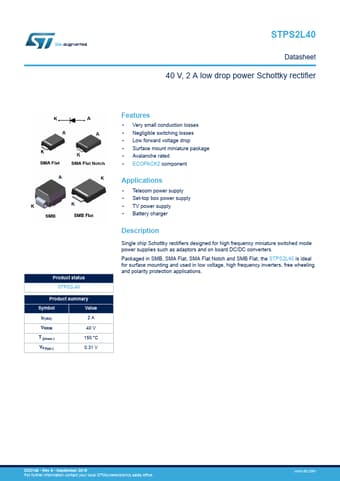

Preview of STPS2L40 PDF
datasheet Preview Page 2 datasheet Preview Page 3
