STPS2L25 Datasheet - STMicroelectronics

2A low drop power Schottky rectifier

STPS2L25 Features

* Very low forward voltage drop for less power dissipation

* Optimized conduction/reverse losses trade-off which means the highest efficiency in the applications

* Avalanche rated

* ECOPACK2 compliant Applications

* Cordless appliance

* SSD

* B

STPS2L25 General Description

Schottky rectifiers designed for high frequency miniature switched mode power supplies such as adaptors and on board DC/DC converters. Packaged in SMA Flat Notch or SMB for thermal resistance characteristic improvement, the STPS2L25 is ideal for use in parallel with MOSFETs in synchronous rectificat.

STPS2L25 Datasheet (321.94 KB)

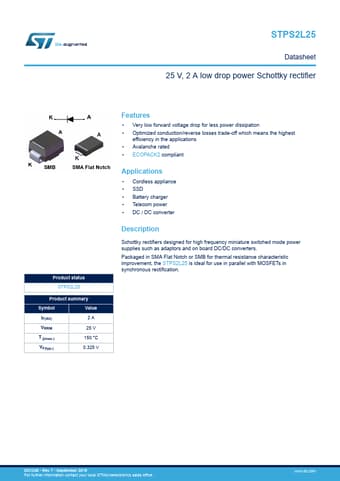

STPS2L25 Datasheet Preview — Preview of STPS2L25 PDF

Datasheet Details

Part number:

STPS2L25

Manufacturer:

STMicroelectronics ↗

File Size:

321.94 KB

Description:

2a low drop power schottky rectifier.
STPS2L25 Datasheet 25 V, 2 A low drop power Schottky rectifier Product status STPS2L25 Product summary Symbol Value IF(AV) 2A VRRM 25 V T j(m.
