STPS2L40U Datasheet - STMicroelectronics

LOW DROP POWER SCHOTTKY RECTIFIER

STPS2L40U Features

* Very small conduction losses

* Negligible switching losses

* Low forward voltage drop

* Surface mount miniature package

* Avalanche rated

* ECOPACK2 component Applications

* Telecom power supply

* Set-top box power supply

* TV

STPS2L40U General Description

Single chip Schottky rectifiers designed for high frequency miniature switched mode power supplies such as adaptors and on board DC/DC converters. Packaged in SMB, SMA Flat, SMA Flat Notch and SMB Flat, the STPS2L40 is ideal for surface mounting and used in low voltage, high frequency inverters, fre.

STPS2L40U Datasheet (385.88 KB)

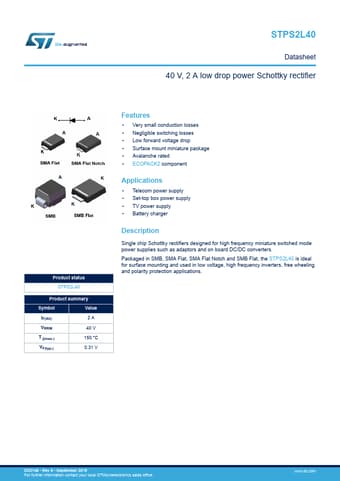

STPS2L40U Datasheet Preview — Preview of STPS2L40U PDF

Datasheet Details

Part number:

STPS2L40U

Manufacturer:

STMicroelectronics ↗

File Size:

385.88 KB

Description:

Low drop power schottky rectifier.
STPS2L40 Datasheet 40 V, 2 A low drop power Schottky rectifier Product status STPS2L40 Product summary Symbol Value IF(AV) 2A VRRM 40 V T j(m.
