STPS40170C

170V power Schottky rectifier

STMicroelectronics

STPS40170C Features

* High junction temperature capability

* Low leakage current

* High voltage capabilities

* Good trade-off between leakage current and forward voltage drop

* Low thermal resistance

* High frequency operation

* Avalanche specification

* E

STPS40170C General Description

This dual center tab Schottky rectifier is suited for high frequency switched mode power supplies. Packaged in TO-247, D²PAK and TO-247, the STPS40170C is optimized for use to enhance the reliability in applications. DS4412 - Rev 2 - June 2018 For further information contact your local STMicroelect.

STPS40170C Datasheet (575.43 KB)

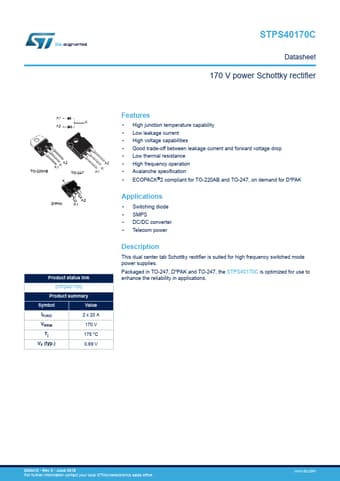

STPS40170C Datasheet Preview — Preview of STPS40170C PDF

Datasheet Details

Part number:

STPS40170C

Manufacturer:

STMicroelectronics ↗

File Size:

575.43 KB

Description:

170v power schottky rectifier.
