STPS40150CG - 150V power Schottky rectifier

STPS40150CG Description

STPS40150C Datasheet 150 V power Schottky rectifier A1 K A2 TO-220AB A1 K A2 TO-247 K A2 K A1 D²PAK A2 A1 .
This dual center tab Schottky rectifier is suited for high frequency switched mode power supplies.

STPS40150CG Features

* High junction temperature capability
* Low leakage current
* High voltage capabilities
* Good trade off between leakage current and forward voltage drop
* Low thermal resistance
* High frequency operation
* ECOPACK®2 compliant for TO-220AB an

STPS40150CG Applications

* Switching diode
* SMPS
* DC/DC converter

📥 Download Datasheet

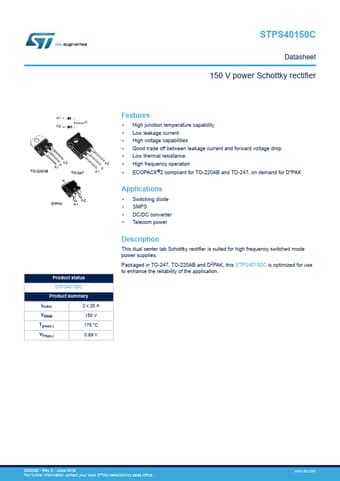

Preview of STPS40150CG PDF
datasheet Preview Page 2 datasheet Preview Page 3
