STPS40SM100C

40A power Schottky rectifier

STPS40SM100C Features

* Low forward voltage drop

* Good trade-off between leakage current and forward voltage drop

* High frequency operation

* Avalanche capability specified

* ECOPACK®2 compliant Applications

* Switching diode

* SMPS

* DC/DC converter

STPS40SM100C General Description

The STPS40SM100C is suited for high frequency switch mode power supply. Packaged in TO-220AB, the STPS40SM100C is optimized for use in notebook and game station adaptors, providing in these applications a good efficiency at both low and high load. DS6173 - Rev 4 - February 2019 For further informat.

STPS40SM100C Datasheet (198.89 KB)

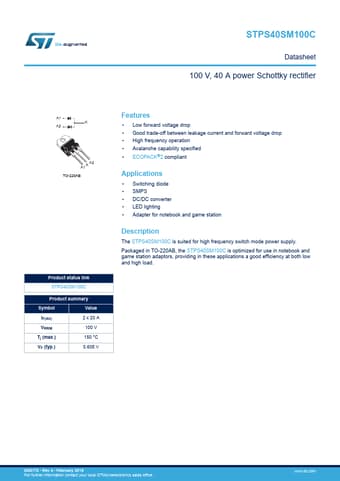

Preview of STPS40SM100C PDF

Datasheet Details

Part number:

STPS40SM100C

Manufacturer:

STMicroelectronics ↗

File Size:

198.89 KB

Description:

40a power schottky rectifier.
STPS40SM100C Datasheet 100 V, 40 A power Schottky rectifier A1 K A2 A1 K A2 TO-220AB Product status link STPS40SM100C Product summary Symbol Valu.
