STPS40150CW 150V power Schottky rectifier

This dual center tab Schottky rectifier is suited for high frequency switched mode power supplies. Packaged in TO-247, TO-220AB and D2PAK, this STPS40150C is optimized for use to enhance the reliability of the application. DS3262 - Rev 2 - June 2018 For further information contact your local STMicr.

STPS40150CW Features

* High junction temperature capability

* Low leakage current

* High voltage capabilities

* Good trade off between leakage current and forward voltage drop

* Low thermal resistance

* High frequency operation

* ECOPACK®2 compliant for TO-220AB an

STPS40150CG_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STPS40150CW, STPS40150CG. Please refer to the document for exact specifications by model.

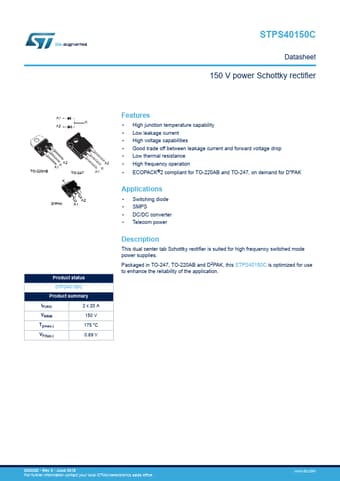

STPS40150CW Datasheet Preview Page 2 STPS40150CW Datasheet Preview Page 3

Datasheet Details

Part number:

STPS40150CW, STPS40150CG

Manufacturer:

STMicroelectronics ↗

File Size:

515.11 KB

Description:

150v power schottky rectifier.

Note:

This datasheet PDF includes multiple part numbers: STPS40150CW, STPS40150CG.
Please refer to the document for exact specifications by model.
