STPS40100HR Datasheet, Rectifier, ST Microelectronics

STPS40100HR Features

  • Rectifier
  • Forward current: 2 x 20 A Repetitive peak voltage: 100 V Low forward voltage drop: 0.9 V Maxim

PDF File Details

Part number:

STPS40100HR

Manufacturer:

STMicroelectronics ↗

File Size:

103.84kb

Download:

📄 Datasheet

Description:

Aerospace 2 x 20 a - 100 v schottky rectifier. This power Schottky rectifier is designed and packaged to comply with the ESCC5000 specification for aerospace products. Housed in he

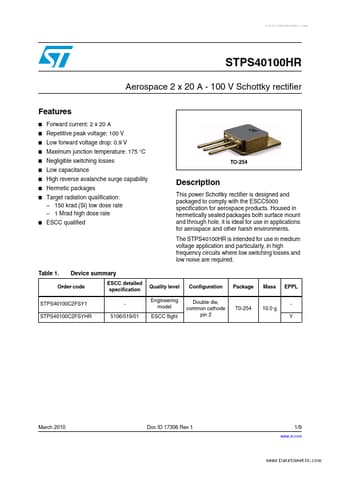

Datasheet Preview: STPS40100HR 📥 Download PDF (103.84kb)
Page 2 of STPS40100HR Page 3 of STPS40100HR

STPS40100HR Application

  • Applications for aerospace and other harsh environments. The STPS40100HR is intended for use in medium voltage application and particularly, in high
