STPS40150C, STPS40150CG 150V power Schottky rectifier

STMicroelectronics

Description

STPS40150C Datasheet 150 V power Schottky rectifier A1 K A2 TO-220AB A1 K A2 TO-247 K A2 K A1 D²PAK A2 A1 .
This dual center tab Schottky rectifier is suited for high frequency switched mode power supplies.

📥 Download Datasheet

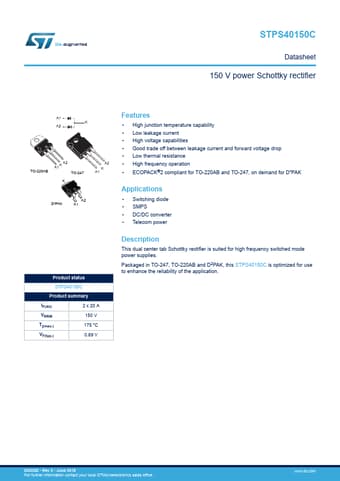

STPS40150C Datasheet Preview — This datasheet PDF includes multiple part numbers: STPS40150C, STPS40150CG. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STPS40150C, STPS40150CG
Manufacturer: STMicroelectronics ↗
File Size: 515.11 KB
Datasheet: STPS40150CG_STMicroelectronics.pdf
Description: 150V power Schottky rectifier
Note: This datasheet PDF includes multiple part numbers: STPS40150C, STPS40150CG.
Please refer to the document for exact specifications by model.

Features

* High junction temperature capability
* Low leakage current
* High voltage capabilities
* Good trade off between leakage current and forward voltage drop
* Low thermal resistance
* High frequency operation
* ECOPACK®2 compliant for TO-220AB an

Applications

* Switching diode
* SMPS
* DC/DC converter
