STPS4030CG (STPS4030Cx) LOW DROP POWER SCHOTTKY RECTIFIER

STMicroelectronics

Description

® STPS4030CT/CG/CR LOW DROP POWER SCHOTTKY RECTIFIER MAJOR PRODUCTS CHARACTERISTICS A1 IF(AV) VRRM Tj (max) VF (max) 2 x 20 A 30 V 150°C 0.40 V K .
Dual Schottky rectifier suited for switch Mode Power Supply and high frequency DC to DC converters.

📥 Download Datasheet

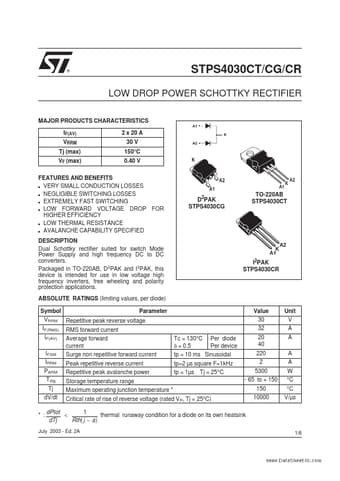

STPS4030CG Datasheet Preview — Preview of STPS4030CG PDF

Datasheet Specifications

Part number: STPS4030CG
Manufacturer: STMicroelectronics ↗
File Size: 74.44 KB
Datasheet: STPS4030CG_STMicroelectronics.pdf
Description: (STPS4030Cx) LOW DROP POWER SCHOTTKY RECTIFIER

Applications

* ABSOLUTE RATINGS (limiting values, per diode) Symbol Parameter VRRM Repetitive peak reverse voltage IF(RMS) RMS forward current IF(AV) IFSM IRRM PARM Tstg Tj dV/dt
* : Average forward current Surge non repetitive forward current Peak repetitive reverse current Repetitive peak avalanche power St
