STPS40L45CG Datasheet - STMicroelectronics

Low drop power Schottky rectifier

STPS40L45CG Features

* Low forward voltage drop meaning very small conduction losses

* Low switching losses allowing high frequency operation

* Avalanche capability specified October 2013 This is information on a product in full production. DocID6857 Rev 5 1/11 www.st.com Characteristics 1 Characterist

STPS40L45CG General Description

Dual center tap Schottky barrier rectifier designed for high frequency switched mode power supplies and DC to DC converters. Packaged in TO-220AB, TO-247 and D2PAK these devices are intended for use in low voltage, high frequency inverters, free-wheeling and polarity protection applications. Table .

STPS40L45CG Datasheet (180.36 KB)

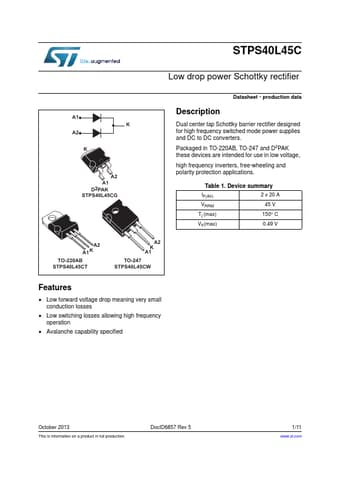

Preview of STPS40L45CG PDF

Datasheet Details

Part number:

STPS40L45CG

Manufacturer:

STMicroelectronics ↗

File Size:

180.36 KB

Description:

Low drop power schottky rectifier.
STPS40L45C Low drop power Schottky rectifier A1 K A2 K A2 A1 D2PAK STPS40L45CG A2 A1K TO-220AB STPS40L45CT A2 K A1 TO-247 STPS40L45CW Datasheet -.
