STPS40L15C Datasheet - STMicroelectronics

Low drop OR-ing power Schottky diode

STPS40L15C General Description

Dual center tap schottky rectifier packaged in TO-220AB and TO-247, this device is especially intended for use as OR-ing diode in fault tolerant power supply equipments. A1 A2 K K A2 K A1 TO-220AB STPS40L15CT A2 K A1 TO-247 STPS40L15CW Table 1. Device summary Symbol IF(AV) VRRM Tj (max) VF (max.

STPS40L15C Datasheet (93.24 KB)

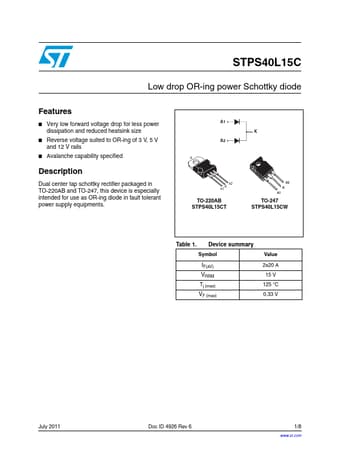

Preview of STPS40L15C PDF

Datasheet Details

Part number:

STPS40L15C

Manufacturer:

STMicroelectronics ↗

File Size:

93.24 KB

Description:

Low drop or-ing power schottky diode.
