STPS40M100CR

Power Schottky Rectifier

STMicroelectronics

STPS40M100CR Features

* High current capability

* Avalanche rated

* Low forward voltage drop current

* High frequency operation

* ECOPACK®2 compliant Applications

* Switching diode

* SMPS

* DC/DC converter

* LED lighting

* Desktop power suppl

STPS40M100CR General Description

This dual diode Schottky rectifier is suited for high frequency switch mode power supply. Packed in TO-220AB and I2Pak, the STPS40M100C is optimized for use in notebook, game station and desktop adaptors, providing in these applications a good efficiency at both low and high load. DS6170 - Rev 4 - .

STPS40M100CR Datasheet (218.65 KB)

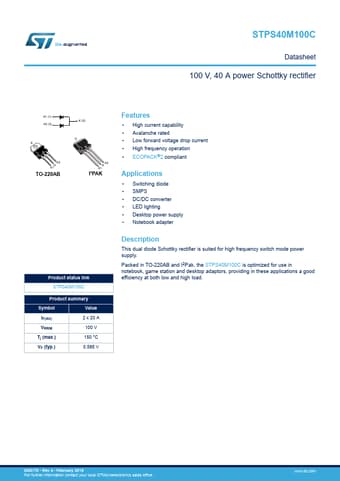

STPS40M100CR Datasheet Preview — Preview of STPS40M100CR PDF

Datasheet Details

Part number:

STPS40M100CR

Manufacturer:

STMicroelectronics ↗

File Size:

218.65 KB

Description:

Power schottky rectifier.
STPS40M100C Datasheet 100 V, 40 A power Schottky rectifier A1 (1) A2 (3) K K (2) K A2 A1K TO-220AB K A2 A1 I²PAK Product status link STPS40M100C .
