STPS40M100CT, STPS40M100C Power Schottky Rectifier

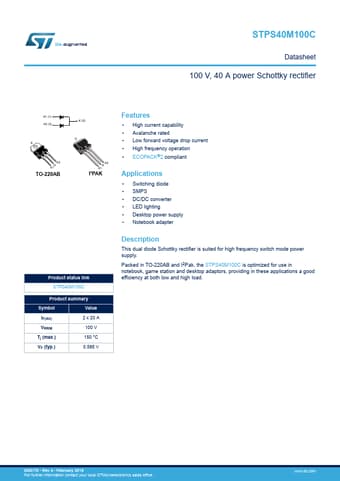

📥 Download Datasheet  Datasheet Preview Page 1

Description

STPS40M100C Datasheet 100 V, 40 A power Schottky rectifier A1 (1) A2 (3) K K (2) K A2 A1K TO-220AB K A2 A1 I²PAK Product status link STPS40M100C .
This dual diode Schottky rectifier is suited for high frequency switch mode power supply.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS40M100CT, STPS40M100C. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
STPS40M100CT, STPS40M100C
Manufacturer
STMicroelectronics ↗
File Size
218.65 KB
Datasheet
STPS40M100C_STMicroelectronics.pdf
Description
Power Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: STPS40M100CT, STPS40M100C.
Please refer to the document for exact specifications by model.

Features

* High current capability
* Avalanche rated
* Low forward voltage drop current
* High frequency operation

Applications

* Switching diode
* SMPS
* DC/DC converter
* LED lighting
* Desktop power supply
