STPS40M60CT, STPS40M60C power Schottky rectifier

STMicroelectronics

Description

STPS40M60C High efficiency 60 V power Schottky rectifier .
This dual diode Schottky rectifier is suited for high frequency switch mode power supply.

📥 Download Datasheet

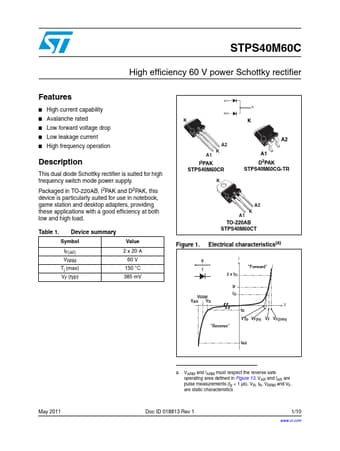

STPS40M60CT Datasheet Preview — This datasheet PDF includes multiple part numbers: STPS40M60CT, STPS40M60C. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STPS40M60CT, STPS40M60C
Manufacturer: STMicroelectronics ↗
File Size: 125.60 KB
Datasheet: STPS40M60C-STMicroelectronics.pdf
Description: power Schottky rectifier
Note: This datasheet PDF includes multiple part numbers: STPS40M60CT, STPS40M60C.
Please refer to the document for exact specifications by model.

Features

* High current capability
* Avalanche rated
* Low forward voltage drop
* Low leakage current

Applications

* with a good efficiency at both low and high load. Table 1. Device summary Symbol IF(AV) VRRM Tj (max) VF (typ) Value 2 x 20 A 60 V 150 °C 385 mV A1 A2 K A2 K A1 I2PAK STPS40M60CR K K K A2 A1 D2PAK STPS40M60CG-TR A2 K A1 TO-220AB STPS40M60CT Figure 1. Electrical characteristics(a) V I "Forwa
