STPS40M80CT, STPS40M80C Power Schottky rectifier

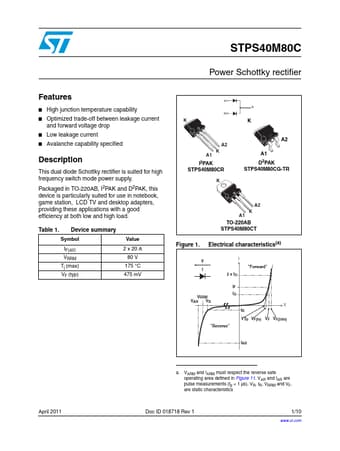

📥 Download Datasheet  Datasheet Preview Page 1

Description

STPS40M80C Power Schottky rectifier .
This dual diode Schottky rectifier is suited for high frequency switch mode power supply.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS40M80CT, STPS40M80C. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
STPS40M80CT, STPS40M80C
Manufacturer
STMicroelectronics ↗
File Size
122.79 KB
Datasheet
STPS40M80C-STMicroelectronics.pdf
Description
Power Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS40M80CT, STPS40M80C.
Please refer to the document for exact specifications by model.

Features

* High junction temperature capability
* Optimized trade-off between leakage current and forward voltage drop
* Low leakage current

Applications

* with a good efficiency at both low and high load. Table 1. Device summary Symbol IF(AV) VRRM Tj (max) VF (typ) Value 2 x 20 A 80 V 175 °C 475 mV A1 A2 K A2 K A1 I2PAK STPS40M80CR K K K A2 A1 D2PAK STPS40M80CG-TR A2 K A1 TO-220AB STPS40M80CT Figure 1. Electrical characteristics(a) V I "Forwa
