STPST5H100

power Schottky trench rectifier

STMicroelectronics

STPST5H100 Features

* ST trench patented process

* High junction temperature capability

* Low forward voltage drop

* Low recovery charges

* Reduces conduction, reverse and switching losses

* Avalanche tested

* Flat packages

* ECOPACK2 compliant Application

STPST5H100 General Description

This 5 A, 100 V rectifier is based on ST trench technology that achieves the best-inclass VF/IR trade-off for a given silicon surface. Integrated in flat and space-saving packages, this STPST5H100 trench rectifier is intended to be used in high frequency miniature switched mode power supplies. It is.

STPST5H100 Datasheet (592.80 KB)

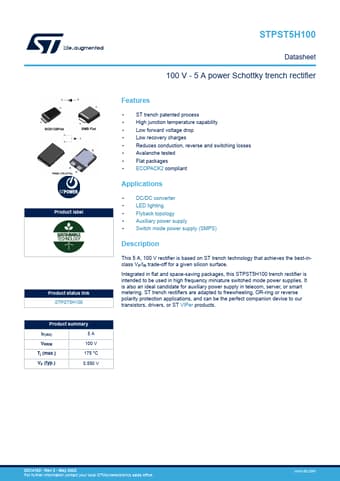

STPST5H100 Datasheet Preview — Preview of STPST5H100 PDF

Datasheet Details

Part number:

STPST5H100

Manufacturer:

STMicroelectronics ↗

File Size:

592.80 KB

Description:

Power schottky trench rectifier.
Product label Product status link STPST5H100 Product summary IF(AV) 5A VRRM 100 V Tj (max.) 175 °C VF (typ.) 0.550 V STPST5H100 Datasheet 1.
