STPST5H100SB-Y

Schottky trench rectifier

STPST5H100SB-Y Features

* AEC-Q101 qualified

* PPAP capable

* ST trench patented process

* Low forward voltage drop

* Low recovery charges

* Reduces conduction, reverse and switching losses

* 100% Avalanche tested in production

* Operating Tj from -40 °C to +1

STPST5H100SB-Y General Description

This 5 A, 100 V rectifier is based on ST trench technology that achieves the best-inclass VF/IR trade-off for a given silicon surface. Integrated in a DPAK package, this STPST5H100SB-Y trench, and automotivegraded device is intended to be used in high frequency miniature switched mode power supplies.

STPST5H100SB-Y Datasheet (392.21 KB)

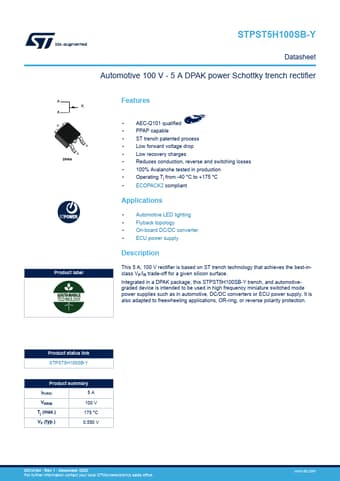

Preview of STPST5H100SB-Y PDF

Datasheet Details

Part number:

STPST5H100SB-Y

Manufacturer:

STMicroelectronics ↗

File Size:

392.21 KB

Description:

Schottky trench rectifier.
