STPST5H100-Y

Automotive power Schottky trench rectifier

STPST5H100-Y Features

* AEC-Q101 qualified

* PPAP capable

* ST trench patented process

* Low forward voltage drop

* Low recovery charges

* Reduces conduction, reverse and switching losses

* 100% Avalanche tested in production

* Operating Tj from -40 °C to +1

STPST5H100-Y General Description

This 5 A, 100 V rectifier is based on ST trench technology that achieves the best-inclass VF/IR trade-off for a given silicon surface. Integrated in flat and space-saving packages, this STPST5H100-Y trench, and automotive-graded device is intended to be used in high frequency miniature switched mode.

STPST5H100-Y Datasheet (542.28 KB)

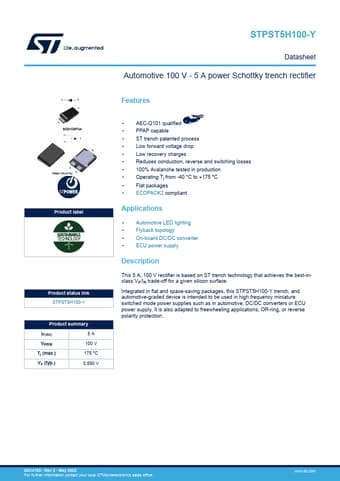

Preview of STPST5H100-Y PDF

Datasheet Details

Part number:

STPST5H100-Y

Manufacturer:

STMicroelectronics ↗

File Size:

542.28 KB

Description:

Automotive power schottky trench rectifier.
Product label Product status link STPST5H100-Y Product summary IF(AV) 5A VRRM 100 V Tj (max.) 175 °C VF (typ.) 0.550 V STPST5H100-Y Datashe.
