STPST5H100SB

power Schottky trench rectifier

STPST5H100SB Features

* ST trench patented process

* High junction temperature capability

* Low forward voltage drop

* Low recovery charges

* Reduces conduction, reverse and switching losses

* Avalanche tested

* ECOPACK2 compliant Applications

* DC/DC conver

STPST5H100SB General Description

This 5 A, 100 V rectifier is based on ST trench technology that achieves the best-inclass VF/IR trade-off for a given silicon surface. Integrated in a DPAK package, this STPST5H100SB trench rectifier is intended to be used in high frequency miniature switched mode power supplies. It is also an ideal.

STPST5H100SB Datasheet (387.62 KB)

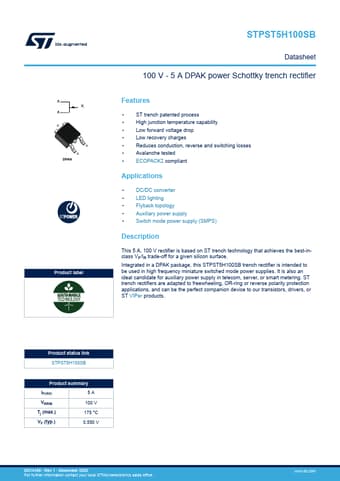

Preview of STPST5H100SB PDF

Datasheet Details

Part number:

STPST5H100SB

Manufacturer:

STMicroelectronics ↗

File Size:

387.62 KB

Description:

Power schottky trench rectifier.
