STSPIN948

Scalable 4.5A dual full-bridge driver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor STMicroelectronics STSPIN948 SCALABLE 4.5 A DUAL FULL-BRIDGE DigiKey 1135 2600 units
$2.19

STSPIN948 Datasheet (1.14 MB)

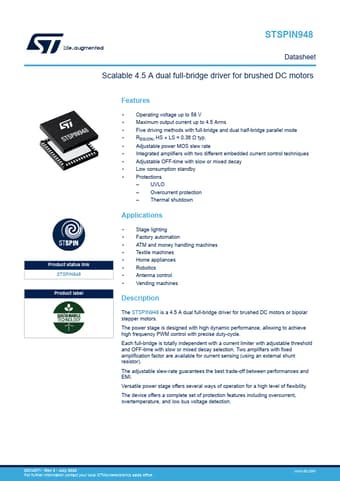

Preview of STSPIN948 PDF Datasheet

Datasheet Details

Part number:

STSPIN948

Manufacturer:

STMicroelectronics ↗

File Size:

1.14 MB

Description:

Scalable 4.5a dual full-bridge driver.

STSPIN948 Features

* Operating voltage up to 58 V

* Maximum output current up to 4.5 Arms

* Five driving methods with full-bridge and dual half-bridge parallel mode

* RDS(ON) HS + LS = 0.36 Ω typ.

* Adjustable power MOS slew rate

* Integrated amplifiers with two d

STSPIN948 General Description

The STSPIN948 is a 4.5 A dual full-bridge driver for brushed DC motors or bipolar stepper motors. The power stage is designed with high dynamic performance, allowing to achieve high frequency PWM control with precise duty-cycle. Each full-bridge is totally independent with a current limiter with ad.
