STT7P2UH7

P-CHANNEL POWER MOSFET

STMicroelectronics

STT7P2UH7 Features

* Order code STT7P2UH7 VDS 20 V RDS(on) max 0.0225 Ω @ 4.5 V ID 7A For the P-channel Power MOSFET the actual polarity of the voltages and the current must be reversed. October 2014 DocID025142 Rev 3 This is information on a product in full production. 1/13 www.st.com Contents Contents STT7P

STT7P2UH7 General Description

This P-channel Power MOSFET utilizes the STripFET H7 technology with a trench gate structure combined with extremely low onresistance. The device also offers ultra-low capacitances for higher switching frequency operations. Table 1: Device summary Order code Marking Package Packaging STT7P2UH7 7L.

STT7P2UH7 Datasheet (369.14 KB)

STT7P2UH7 Datasheet Preview — Preview of STT7P2UH7 PDF

Datasheet Details

Part number:

STT7P2UH7

Manufacturer:

STMicroelectronics ↗

File Size:

369.14 KB

Description:

P-channel power mosfet.

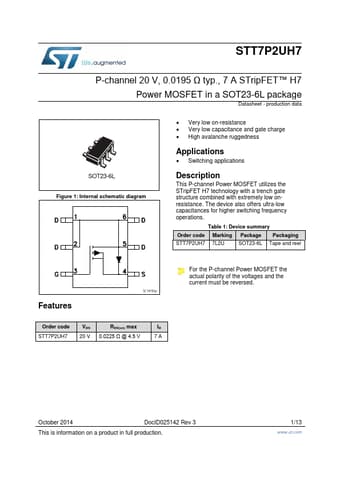

STT7P2UH7 P-channel 20 V, 0.0195 Ω typ., 7 A STripFET™ H7 Power MOSFET in a SOT23-6L package Datasheet - production data SOT23-6L Figure 1: Internal.
