STTB506B

ULTRA-FAST HIGH VOLTAGE DIODE

STMicroelectronics

STTB506B Features

* SPECIFIC TO THE FOLLOWING OPERATIONS : SNUBBING OR CLAMPING, DEMAGNETIZATION AND RECTIFICATION, FREEWHEEL OR BOOSTER DIODE ULTRA-FAST RECOVERY VERY LOW OVERALL POWER LOSSES IN BOTH THE DIODE AND THE COMPANION TRANSISTOR DESIGNED FOR HIGH PULSED CURRENT OPERATIONS SURFACE MOUNT DEVICE TAPE AND REEL O

STTB506B General Description

The TURBOSWITCH is a very high performance series of ultra-fast voltage power diodes from 600V to 1200V. TURBOSWITCH "B" family drastically cuts losses in all high voltage operations which require extremely fast, soft and noise-free power diodes. They are particulary suitable in the primary circuit .

STTB506B Datasheet (58.45 KB)

STTB506B Datasheet Preview — Preview of STTB506B PDF

Datasheet Details

Part number:

STTB506B

Manufacturer:

STMicroelectronics ↗

File Size:

58.45 KB

Description:

Ultra-fast high voltage diode.

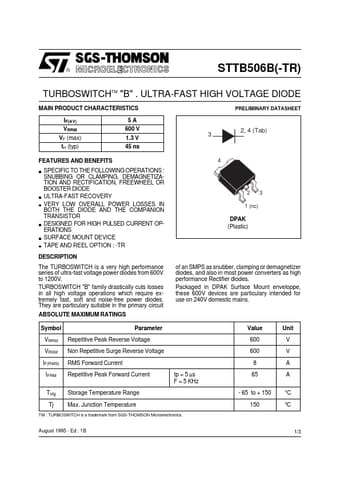

® STTB506B(-TR) TURBOSWITCHTM "B" . ULTRA-FAST HIGH VOLTAGE DIODE MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM VF (max) trr (typ) 5A 600 V 1.3 V 45 n.
