STTH30W02C Turbo 2 ultrafast high voltage rectifier

STTH30W02C Description

STTH30W02C Turbo 2 ultrafast high voltage rectifier .
The STTH30W02CW, uses ST Turbo 2, 200 V technology.

STTH30W02C Features

* Ultrafast switching
* Low reverse recovery current
* Low thermal resistance
* Reduces switching losses

STTH30W02C Applications

* Datasheet  production data A1 K A2 A2 A1 K TO-247 STTH30W02CW Table 1. Device summary Symbol Value IF(AV) VRRM trr (typ) Tj (max) VF (typ) 2 x 15 A 200 V 20 ns 175 °C 0.90 V October 2012 This is information on a product in full production. Doc ID 023273 Rev 1 1/8 www. st. com 8 Character

📥 Download Datasheet

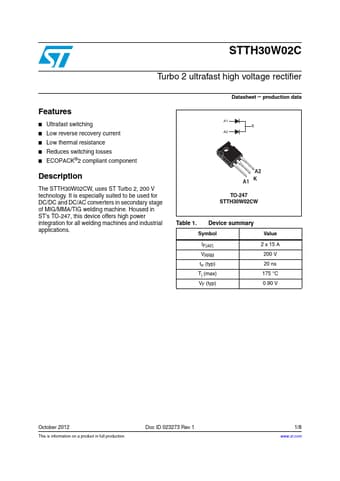

Preview of STTH30W02C PDF
datasheet Preview Page 2 datasheet Preview Page 3
