STU5N52K3

N-CHANNEL POWER MOSFET

STMicroelectronics

STU5N52K3 Features

* Order code VDS RDS(on)max. STD5N52K3 STF5N52K3 525 V 1.5 Ω STU5N52K3

* 100% avalanche tested

* Extremely high dv/dt capability

* Very low intrinsic capacitance

* Improved diode reverse recovery characteristics

* Zener-protected ID 4.4 A Package DPAK

STU5N52K3 General Description

These MDmesh™ K3 Power MOSFETs are the result of improvements applied to STMicroelectronics’ MDmesh™ technology, combined with a new optimized vertical structure. These devices boast an extremely low on-resistance, superior dynamic performance and high avalanche capability, rendering them suitable f.

STU5N52K3 Datasheet (501.55 KB)

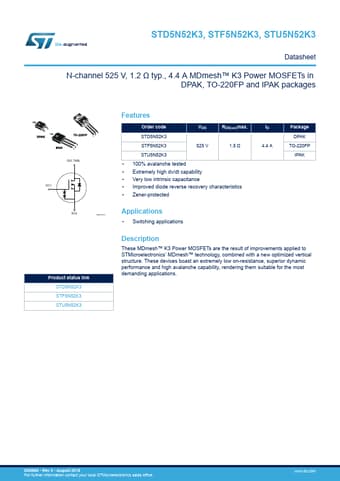

STU5N52K3 Datasheet Preview — Preview of STU5N52K3 PDF

Datasheet Details

Part number:

STU5N52K3

Manufacturer:

STMicroelectronics ↗

File Size:

501.55 KB

Description:

N-channel power mosfet.
STD5N52K3, STF5N52K3, STU5N52K3 Datasheet N-channel 525 V, 1.2 Ω typ., 4.4 A MDmesh™ K3 Power MOSFETs in DPAK, TO-220FP and IPAK packages D(2, TAB) G.
