STU5N95K3 - N-Channel Power MOSFET

STMicroelectronics

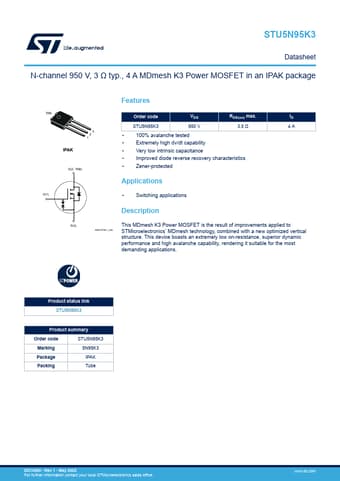

STU5N95K3 Datasheet Preview — Preview of STU5N95K3 PDF

Datasheet Details

Part number	STU5N95K3
Manufacturer	STMicroelectronics ↗
File Size	376.77 KB
Description	N-Channel Power MOSFET
Datasheet	STU5N95K3-STMicroelectronics.pdf

STU5N95K3 Product details

Description

S(3) This MDmesh K3 Power MOSFET is the result of improvements applied to AM01476v1_tab STMicroelectronics’ MDmesh technology, combined with a new optimized vertical structure.This device boasts an extremely low on-resistance, superior dynamic performance and high avalanche capability, rendering it suitable for the most demanding applications.Product status link STU5N95K3 Product summary Order code STU5N95K3 Marking 5N95K3 Package IPAK Packing Tube DS14293 - Rev 1 - May 2023 F

Features

TAB Order code VDS RDS(on) max. ID STU5N95K3 950 V 3.5 Ω 4A 3 2 1.
100% avalanche tested.
Extremely high dv/dt capability IPAK.
Very low intrinsic capacitance.
Improved diode reverse recovery characteristics D(2, TAB).
Zener-protected.
