STU5N95K5 - N-channel Power MOSFET

STMicroelectronics

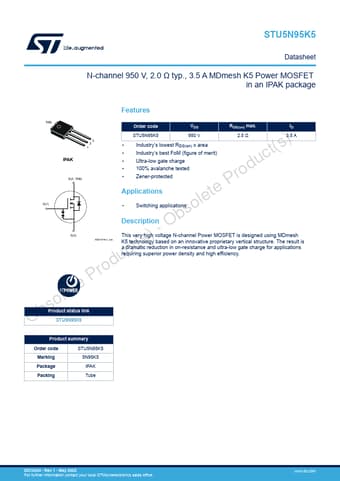

STU5N95K5 Datasheet Preview — Preview of STU5N95K5 PDF

Datasheet Details

Part number	STU5N95K5
Manufacturer	STMicroelectronics ↗
File Size	383.84 KB
Description	N-channel Power MOSFET
Datasheet	STU5N95K5-STMicroelectronics.pdf

STU5N95K5 Product details

Description

- O S(3) This very high voltage N-channel Power MOSFET is designed using MDmesh t(s) AM01476v1_tab K5 technology based on an innovative proprietary vertical structure.The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications crequiring superior power density and high efficiency.solete Produ Product status link Ob STU5N95K5 Product summary Order code STU5N95K5 Marking 5N95K5 Package IPAK Packing Tube DS14324 - Rev 1 - May 2023 For further inf

Features

TAB Order code VDS RDS(on) max. ID 3 ) 2 t(s 1 c IPAK te Produ D(2, TAB) STU5N95K5 950 V.
Industry’s lowest RDS(on) x area.
Industry’s best FoM (figure of merit).
Ultra-low gate charge.
100% avalanche tested.
Zener-protected.
