STU5NK50Z

N-channel MOSFET

STMicroelectronics

STU5NK50Z Features

* Order codes VDS RDS(on) max. STB5NK50Z-1 STD5NK50ZT4 STP5NK50Z 500 V 1.5 Ω STP5NK50ZFP STU5NK50Z

* 100% avalanche tested

* Gate charge minimized

* Very low intrinsic capacitance

* Zener-protected ID 4.4 A Package I2PAK DPAK TO-220 TO-220FP IPAK Applicati

STU5NK50Z General Description

These high-voltage devices are Zener-protected N-channel Power MOSFETs developed using the SuperMESH™ technology by STMicroelectronics, an optimization of the well-established PowerMESH™. In addition to a significant reduction in on-resistance, these devices are designed to ensure a high level of dv.

STU5NK50Z Datasheet (669.79 KB)

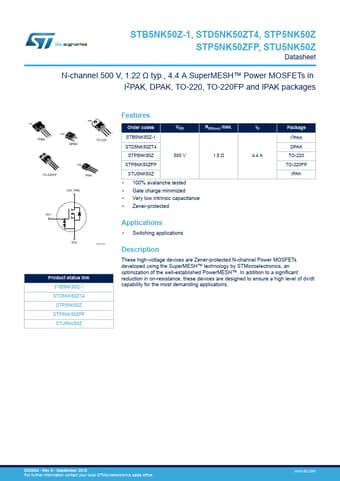

STU5NK50Z Datasheet Preview — Preview of STU5NK50Z PDF

Datasheet Details

Part number:

STU5NK50Z

Manufacturer:

STMicroelectronics ↗

File Size:

669.79 KB

Description:

N-channel mosfet.
STB5NK50Z-1, STD5NK50ZT4, STP5NK50Z STP5NK50ZFP, STU5NK50Z Datasheet N-channel 500 V, 1.22 Ω typ., 4.4 A SuperMESH™ Power MOSFETs in I2PAK, DPAK, TO‑2.
