STU5N65M6 - N-channel Power MOSFET

STMicroelectronics

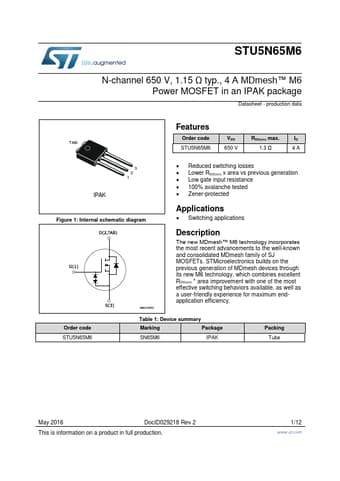

STU5N65M6 Datasheet Preview — Preview of STU5N65M6 PDF

Datasheet Details

Part number	STU5N65M6
Manufacturer	STMicroelectronics ↗
File Size	554.33 KB
Description	N-channel Power MOSFET
Datasheet	STU5N65M6-STMicroelectronics.pdf

STU5N65M6 Product details

Description

The new MDmesh™ M6 technology incorporates the most recent advancements to the well-known and consolidated MDmesh family of SJ MOSFETs. area improvement with one of the most effective switching behaviors available, as well as a user-friendly experience for maximum endapplication efficiency.

Features

Order code VDS RDS(on) max. ID TAB STU5N65M6 650 V 1.3 Ω 4A IPAK 3 2 1 Figure 1: Internal schematic diagram.
Reduced switching losses.
Lower RDS(on) x area vs previous generation.
Low gate input resistance.
100% avalanche tested.
Zener-protected.
