STU60N55F3 Datasheet, Mosfet, STMicroelectronics

STU60N55F3 Features

  • Mosfet Type STB60N55F3 STD60N55F3 STF60N55F3 STI60N55F3 STP60N55F3 STU60N55F3
  • VDSS 55V 55V 55V 55V 55V 55V RDS(on) <8.5mΩ <8.5mΩ <8.5mΩ <8.5mΩ <8.5mΩ <8.5mΩ ID 80A 80A 4

PDF File Details

Part number:

STU60N55F3

Manufacturer:

STMicroelectronics ↗

File Size:

654.48kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This STripFET™ III Power MOSFET technology is among the latest improvements, which have been especially tailored to minimize on-state

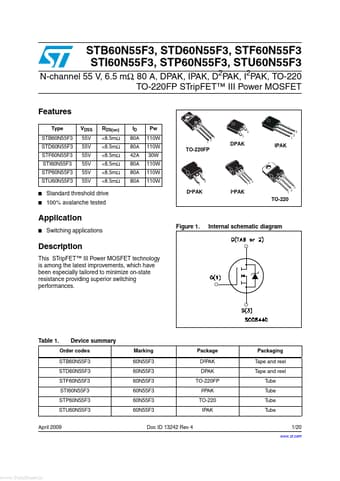

Datasheet Preview: STU60N55F3 📥 Download PDF (654.48kb)
Page 2 of STU60N55F3 Page 3 of STU60N55F3

STU60N55F3 Application

  • Applications Figure 1. Internal schematic diagram Description This STripFET™ III Power MOSFET technology is among the latest improvements, which
