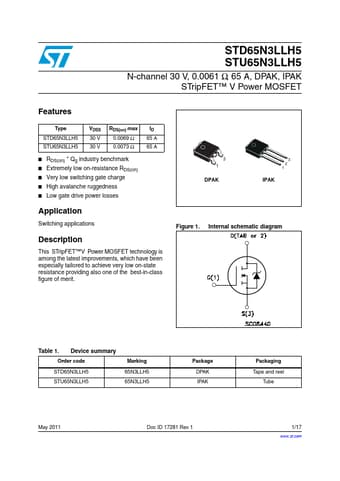

Preview of STU65N3LLH5 PDF
STU65N3LLH5 Datasheet Preview Page 2 STU65N3LLH5 Datasheet Preview Page 3

Datasheet Details

Part number:

STU65N3LLH5

Manufacturer:

STMicroelectronics ↗

File Size:

770.61 KB

Description:

N-channel power mosfet.

STU65N3LLH5, N-channel Power MOSFET

This STripFET™V Power MOSFET technology is among the latest improvements, which have been especially tailored to achieve very low on-state resistance providing also one of the best-in-class figure of merit.

3 1 DPAK 3 2 1 IPAK Figure 1.

Internal schematic diagram Table 1.

Device summary Order co

STU65N3LLH5 Features

* Type STD65N3LLH5 STU65N3LLH5 VDSS 30 V 30 V RDS(on) max 0.0069 Ω 0.0073 Ω ID 65 A 65 A

* RDS(on)

* Qg industry benchmark

* Extremely low on-resistance RDS(on)

* Very low switching gate charge

* High avalanche ruggedness

* Low gate drive power losses Application Switchin
