STU6N60M2 Datasheet, Mosfet, STMicroelectronics

STU6N60M2 Features

  • Mosfet Order codes STF6N60M2 STP6N60M2 STU6N60M2 VDS @ TJmax RDS(on) max ID 650 V 1.2 Ω 4.5 A
  • Extremely low gate charge
  • Lower RDS(on) x area vs previous generation

PDF File Details

Part number:

STU6N60M2

Manufacturer:

STMicroelectronics ↗

File Size:

1.04MB

Download:

📄 Datasheet

Description:

N-channel power mosfet. These devices are N-channel Power MOSFETs developed using a new generation of MDmesh™ technology: MDmesh II Plus™ low Qg. These revol

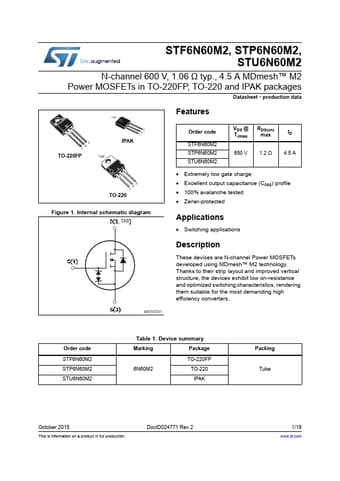

Datasheet Preview: STU6N60M2 📥 Download PDF (1.04MB)
Page 2 of STU6N60M2 Page 3 of STU6N60M2

STU6N60M2 Application

  • Applications
  • Switching applications AM15572v1 Description These devices are N-channel Power MOSFETs developed using a new generation of
