STU6NA100 Datasheet - STMicroelectronics

STU6NA100 N-channel Power MOSFET

® STU6NA100 N - CHANNEL 1000V - 1.45Ω - 6A - Max220 FAST POWER MOS TRANSISTOR PRELIMINARY DATA TYPE STU6NA100 www.DataSheet4U.com s TYPICAL s V DSS 1000 V R DS(on) < 1.7 Ω ID 6A s s s s s RDS(on) = 1.45 Ω ± 30V GATE TO SOURCE VOLTAGE RANTING 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW INTRINSIC CAPACITANCE GATE CHARGE MINIMIZED REDUCED VOLTAGE SPREAD Max220 3 2 1 APPLICATIONS HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLY (SMPS) s CONSUMER AND INDUSTRIAL .

STU6NA100 Datasheet (73.80 KB)

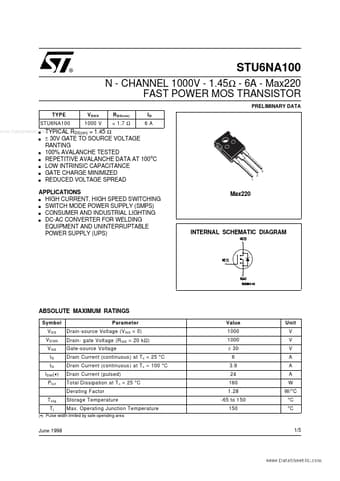

Preview of STU6NA100 PDF

Datasheet Details

Part number:

STU6NA100

Manufacturer:

STMicroelectronics ↗

File Size:

73.80 KB

Description:

N-channel power mosfet.
