STU6N95K5 - N-channel Power MOSFET

STU6N95K5 Description

STD6N95K5, STP6N95K5 STU6N95K5, STW6N95K5 Datasheet N-channel 950 V, 1 Ω typ., 9 A MDmesh™ K5 Power MOSFETs in DPAK, TO-220, IPAK and TO-247 packages .
These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure.

STU6N95K5 Features

* Order codes VDS RDS(on) max. STD6N95K5 STP6N95K5 STU6N95K5 950 V 1.25 Ω STW6N95K5
* DPAK 950 V worldwide best RDS(on)
* Worldwide best FOM (figure of merit)
* Ultra low gate charge
* 100% avalanche tested
* Zener-protected ID 9A PTOT 90 W G(1) Applic

📥 Download Datasheet

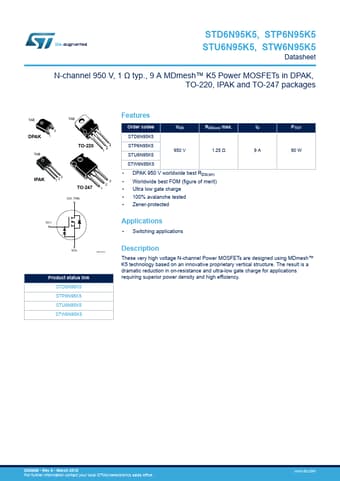

Preview of STU6N95K5 PDF
datasheet Preview Page 2 datasheet Preview Page 3
