STU6NA90 N-channel Power MOSFET

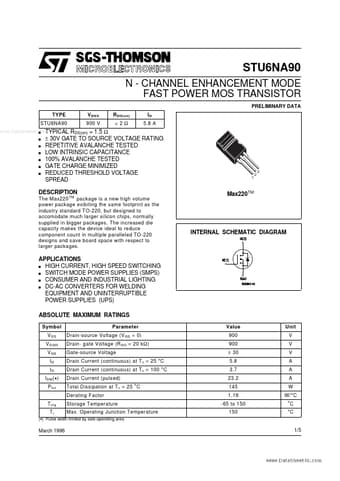

Max220TM INTERNAL SCHEMATIC DIAGRAM APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s CONSUMER AND INDUSTRIAL LIGHTING s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES (UPS) ABSOLUTE MAXIMUM RATINGS Symbol V DS VDGR V GS ID ID I DM .

STU6NA90 N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR PRELIMINARY DATA TYPE STU6NA90 www.DataSheet4U.com s TYPICAL s s s s s s V DSS 900 V R DS(on) <2Ω ID 5.8 A RDS(on) = 1.5 Ω ± 30V GATE TO SOURCE VOLTAGE RATING REPETITIVE AVALANCHE TESTED LOW INTRINSIC CAPACITANCE 100% AVALANCHE TESTED GATE CHARGE MINIMIZED REDUCED THRESHOLD VOLTAGE SPREAD 1 2 3 The Max220 TM package is a new high volume power package exibiting the same footprint as the industry standard TO-220, but designed .
